Festo - LFR-1/4-D-5M-MINI-162719 - Filter Regulating Valve

SKU: festo-lfr-1-4-d-5m-mini-162719

Browse all parts

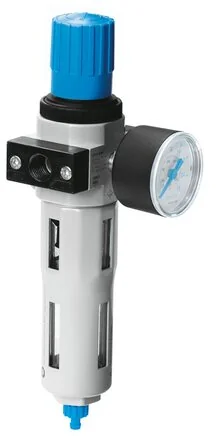

Festo - LFR-1/4-D-5M-MINI-162719 - Filter Regulating Valve

€175.68€150.15 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€175.68

Brand
Festo
Size
Mini
Model Series
D
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Clamps Material
PC
Filter Porosity
5
Clamp Protection
Metal protection basket
Condensate Drain
Manually rotating
Housing Material
Zinc pressure cast
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Construction Set Up
Filter regulator with pressure gauge
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Max. Condensate Amount
22,000
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,1 to 1,6
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Air Purity Class At The Output
Inerte Gase
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (bar)
0,2
Pressure Regulation Range (bar)
0.5 to 12
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
1200
EAN
4052568012700
Manufacturer
Festo
