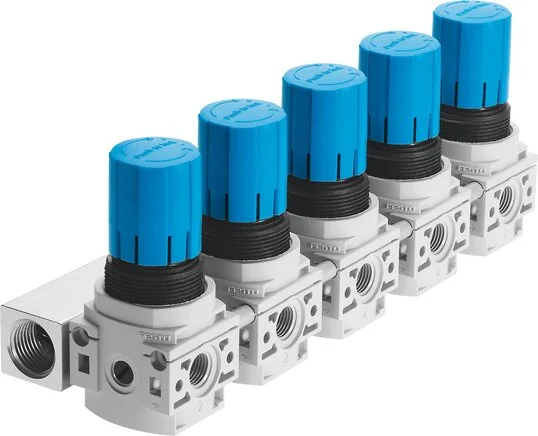

Festo - LRB-1/4-DB-7-O-K5-MINI-540043 - Pressure Regulating Valve Manifold

SKU: festo-lrb-1-4-db-7-o-k5-mini-540043

Browse all parts
Festo - LRB-1/4-DB-7-O-K5-MINI-540043 - Pressure Regulating Valve Manifold

€479.26€409.62 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€479.26

Brand
Festo
Size
Mini
Model Series
DB
Actuation Fuse
Rotary button with stopper
Fastening Type
Front panel integration, With Accessories
Seals Material
NBR
Gasket Material
PVC
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [-:-:-]
Construction Set Up
Directly controlled piston control valve, on P strip
Controller Function
Output pressure constant, With Return current behaviour, With relieving
Installation Position
arbitrary
Spacer Bolts Material
Aluminium wrought alloy
Locking Screw Material
Zinc plated steel
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/4
Medium Temperature (°C)
-5 to 50
Operating Pressure (bar)
1.5 to 10
Ambient Temperature (°C)
-5 to 50
Connection Strip Material
Aluminium wrought alloy
Normal Nominal Flow (l/min)
>= 1000 l/min
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Pressure Hysteresis (bar)
0,5
Pressure Regulator Range (MPa)
0.05 to 0.7
Pressure Regulation Range (bar)
0.5 to 7
EAN
4052568178345
Manufacturer
Festo
