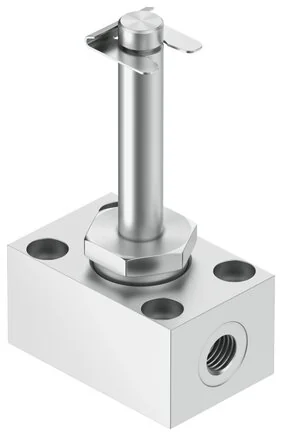

Festo - MC-2-1/8-2187 - Solenoid Valve

SKU: festo-mc-2-1-8-2187

Browse all parts
Festo - MC-2-1/8-2187 - Solenoid Valve

€172.53€147.46 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€172.53

Brand
Festo
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Valve Function
2/2 closed monostable
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Nominal Width (mm)
4
Construction Set Up
Poppet valve with reset spring
Protection Category
IP65
Hand Assist Actuation
None
Shifting Time On (ms)
18
LABS (PWIS) Conformity
VDMA24364-C1-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Shifting Time Off (ms)
20
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
-0,095 to 0,7
Ambient Temperature (°C)
-5 to 40
Bearing Temperature (°C)
-40 to 100
Coil Characteristic Value
96 V DC: 11,0 W
Standard Nominal Flow Rate (Standardised To DIN 1343)
300
EAN
4052568000134
Manufacturer
Festo
