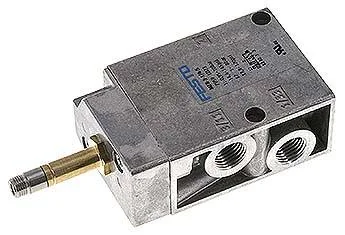

Festo - MFH-3-1/4-EX-535898 - Solenoid Valve

SKU: festo-mfh-3-1-4-ex-535898

Browse all parts
Festo - MFH-3-1/4-EX-535898 - Solenoid Valve

€238.18€203.57 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€238.18

Brand
Festo
Overlap
negative Überdeckung
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
30,5
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
ATEX Gas Category
II 2G
Sealing Principle
Soft
ATEX Dust Category
II 2D
Nominal Width (mm)
7
Construction Set Up
Plate seat
Protection Category
IP65
Pitch Dimension (mm)
32
Electrical Connection
Via f-coil, order separately
Hand Assist Actuation
Ratcheting
Installation Position
arbitrary
Shifting Time On (ms)
10
Ex Ambient Temperature
-5°C <= Ta <= +40°C
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/4
Shifting Time Off (ms)
29
Medium Temperature (°C)
-5 to 40
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
-5 to 40
Bearing Temperature (°C)
-20 to 60
Coil Characteristic Value
See solenoid coil, order separately
Breathing Opening Connection
M3
Exhaust Control Connection 82
M5
Corrosion Resistance Class KBK
1 - low corrosion stress
Ex Ignition Protection Type Gas
Ex h IIC T4 Gb
Ex Ignition Protection Type Dust
Ex h IIIC T130°C Db
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2200
Max. Negative Test Impulse For 1 Signal
3700
Ex Protection Approval Outside Of The EU
EPL Gb (GB)
UKCA Marking (See Declaration Of Conformity)
nach UK EX Vorschriften
CE Certificate (See Declaration Of Conformity)
to EU EX protection directive (ATEX)
Standard Nominal Flow Rate (Standardised To DIN 1343)
800
EAN
4052568169480
Manufacturer
Festo
