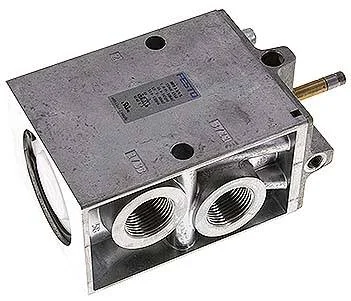

Festo - MFH-3-3/4-S-11968 - Solenoid Valve

SKU: festo-mfh-3-3-4-s-11968

Browse all parts
Festo - MFH-3-3/4-S-11968 - Solenoid Valve

€667.12€570.19 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€667.12

Brand
Festo
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
68,0
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
19
Construction Set Up
Plate seat
Protection Category
IP65
Electrical Connection
Via f-coil, order separately
Hand Assist Actuation
Ratcheting
Installation Position
arbitrary
Shifting Time On (ms)
36
Control Pressure (MPa)
0.1 to 0.8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G3/4
Pneumatic Connection 2
G3/4
Pneumatic Connection 3
G3/4
Shifting Time Off (ms)
32
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
-5 to 40
Bearing Temperature (°C)
-20 to 60
Coil Characteristic Value
See solenoid coil, order separately
Control Air 12 Connection
G1/8
Exhaust Control Connection 82
M5
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2200
Standard Nominal Flow Rate (Standardised To DIN 1343)
7500
EAN
4052568111953
Manufacturer
Festo
