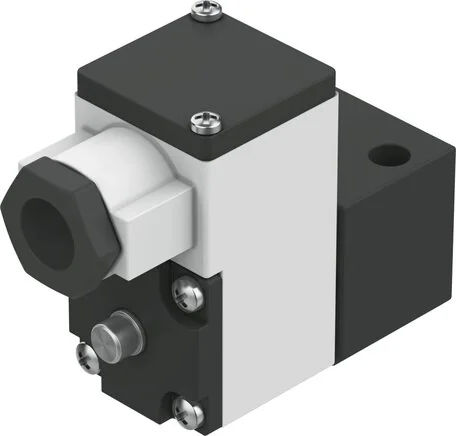

Festo - MGXIAH-3/2-0.8-24DC-KS-8118341 - Pilot Valve

SKU: festo-mgxiah-3-2-0-8-24dc-ks-8118341

Browse all parts
Festo - MGXIAH-3/2-0.8-24DC-KS-8118341 - Pilot Valve

€321.12€274.46 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€321.12

Brand
Festo
Reset Mode
Mechanical spring
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
CNOMO
Flow Direction
Not reversible
Valve Function
3/2 closed monostable
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Certification Body
21-GA4BO-0071X
Construction Set Up
Switch on valve
Max. Input Power Pi
-55°C to +65°C T6 = 1W
Protection Category
IP65
Hand Assist Actuation
Ratcheting
Ex Ambient Temperature
-40°C<=Ta<=50°C/65°C
LABS (PWIS) Conformity
VDMA24364-Zone III
Operating Pressure (MPa)
-0,09 to 0,8
Ambient Temperature (°C)
-20 to 80
Coil Characteristic Value
24 V DC: 1,5 W
Insulation Material Class
H
Max. Input Current Ii (A)
0,67
Max. Input Voltage Ui (V)
31
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Ex Ignition Protection Type Gas
Ex ia IIC T6...T5 Gb
Ex Ignition Protection Type Dust
Ex ia IIIC T135°C Db
Permitted Frequency Oscillations
± 10 %
Effective Internal Capacitance Ci
Negligibly small
Effective Internal Inductivity Li
Negligibly small
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568580919
Manufacturer
Festo
