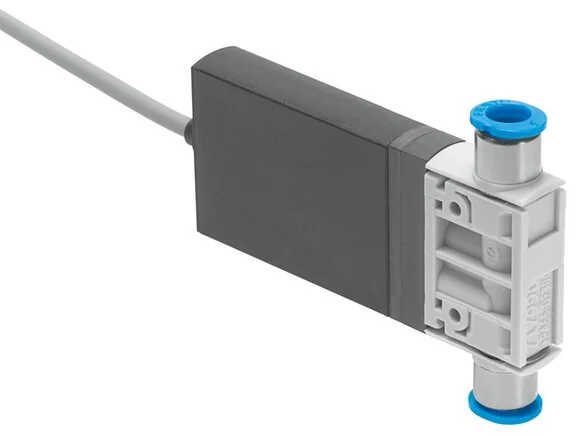

Reset Mode
Pneumatic spring
Material Note
RoHs compliant
Fastening Type
With throughway bores
Flow Direction
Not reversible
Valve Function
2/2 closed monostable
Housing Material
PPS-verstärkt
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Construction Set Up
Poppet valve without reset spring
Additional Functions
Schutzabschaltung
Electrical Connection
cable
Hand Assist Actuation
None
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
QS-4
Pneumatic Connection 2
QS-4
Medium Temperature (°C)
-5 to 60
Operating Pressure (MPa)
0,05 to 0,6
Ambient Temperature (°C)
-5 to 60
Bearing Temperature (°C)
-20 to 50
Coil Characteristic Value
24 V DC: Niederstromphase 2,0 W, Hochstromphase 7,0 W
Reverse Polarity Protection
for operating voltage
Tolerance Shifting Time Off
-0,6
Trigger Signal Range DC (V)
3 to 30
Max. Switching Frequency (Hz)
1.000
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
21.6 to 26.4
Permitted Voltage Oscillations
± 10 %
Tolerance Shifting Time On (%)
±15
Limits Ambient And Media Temperature
in Abhängigkeit von der Schaltfrequenz (siehe Diagramm)
Note On Operating And Control Medium
Oiled operation not possible
Permissible Surface Temperature Magnet (°C)
120
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
100
Switching Time On 0.4 MPa (4 bar, 58 psi) And 24 V In New Condition (ms)
0,8
Switching Time On 0.6 MPa (6 bar, 87 psi) And 24 V In New Condition (ms)
0,90
Switching Time Off 0.4 MPa (4 bar, 58 psi) And 24 V In New Condition (ms)
0,4
Switching Time Off 0.6 MPa (6 bar, 87 psi) And 24 V In New Condition (ms)
0,40
Switching Time On 0.05 MPa (0.5 bar, 7.25 psi) And 24 V In New Condition (ms)
0,8
Switching Time Off 0.05 MPa (0.5 bar, 7.25 psi) And 24 V In New Condition (ms)
0,5
