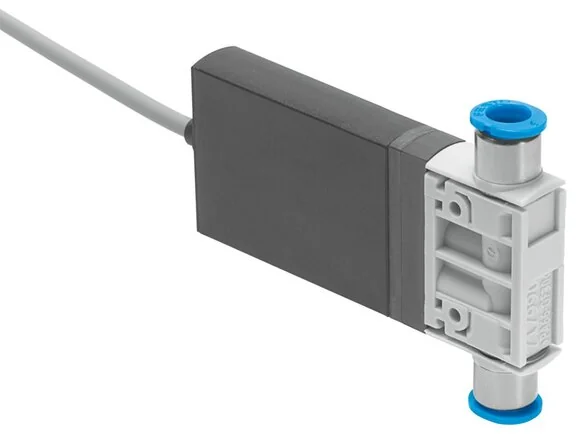

Festo - MHJ10-S-2,5-QS-6-HF-567503 - Solenoid Valve

SKU: festo-mhj10-s-2-5-qs-6-hf-567503

Browse all parts
Festo - MHJ10-S-2,5-QS-6-HF-567503 - Solenoid Valve

€113.09€96.66 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€113.09

Brand
Festo
B-value
0.36
C-value
0,66
Permission
RCM mark
Reset Mode
Pneumatic spring
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
HNBR
Valve Function
2/2 closed monostable
Screws Material
Steel
Build Width (mm)
10
Cable Length (m)
2,5
Housing Material
PPS-verstärkt
Input Resistance
34
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Hard
Construction Set Up
Poppet valve without reset spring
Protection Category
IP55
Additional Functions
Schutzabschaltung
Pitch Dimension (mm)
10,5
Cable Sleeve Material
PUR
Electrical Connection
cable
Hand Assist Actuation
None
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
QS-6
Pneumatic Connection 2
QS-6
Medium Temperature (°C)
-5 to 60
Operating Pressure (MPa)
0,05 to 0,6
Ambient Temperature (°C)
-5 to 60
Bearing Temperature (°C)
-20 to 50
Coil Characteristic Value
24 V DC: Low current phase 3.2 W, high current phase 14,5 W
Reverse Polarity Protection
for operating voltage
Tolerance Shifting Time Off
-0,6
Trigger Signal Range DC (V)
3 to 30
Max. Switching Frequency (Hz)
500
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
21.6 to 26.4
Permitted Voltage Oscillations
± 10 %
Tolerance Shifting Time On (%)
±15
Limits Ambient And Media Temperature
in Abhängigkeit von der Schaltfrequenz (siehe Diagramm)
Note On Operating And Control Medium
Oiled operation not possible
Permissible Surface Temperature Magnet (°C)
120
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
160
Switching Time On 0.4 MPa (4 bar, 58 psi) And 24 V In New Condition (ms)
1,2
Switching Time On 0.6 MPa (6 bar, 87 psi) And 24 V In New Condition (ms)
1,30
Switching Time Off 0.4 MPa (4 bar, 58 psi) And 24 V In New Condition (ms)
0,6
Switching Time Off 0.6 MPa (6 bar, 87 psi) And 24 V In New Condition (ms)
0,60
Switching Time On 0.05 MPa (0.5 bar, 7.25 psi) And 24 V In New Condition (ms)
1,0
Switching Time Off 0.05 MPa (0.5 bar, 7.25 psi) And 24 V In New Condition (ms)
0,8
EAN
4052568100674
Manufacturer
Festo
