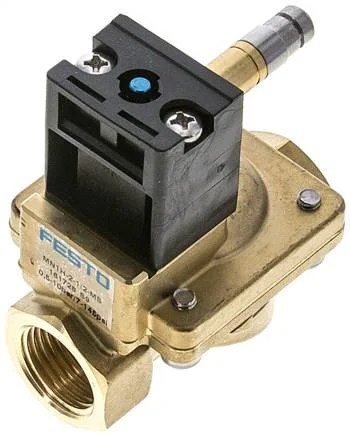

Festo - MN1H-2-1/2-MS-161728 - Solenoid Valve

SKU: festo-mn1h-2-1-2-ms-161728

Browse all parts
Festo - MN1H-2-1/2-MS-161728 - Solenoid Valve

€227.33€194.30 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€227.33

Brand
Festo
Medium
Filtered compressed air, filter porosity 200 µm
Reset Mode
Pneumatic spring
Control Type
pilot operated
Actuation Type
Electrical
Fastening Type
pipe installation
Flow Direction
Not reversible
Valve Function
2/2 closed monostable
Screws Material
High-alloyed stainless steels
Exhaust Function
Cannot be throttled
Housing Material
Brass
Sealing Principle
Soft
Fitting Connection
G1/2
Nominal Width (mm)
13
Construction Set Up
diaphragm valve
Protection Category
mit Steckdose
Electrical Connection
viereckige Bauform
Hand Assist Actuation
tentative
Installation Position
arbitrary
Material Number Screw
14.301
Medium Pressure (bar)
0.5 to 10
Shifting Time On (ms)
30
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Shifting Time Off (ms)
100
Medium Temperature (°C)
-10 to 60
Ambient Temperature (°C)
-10 to 60
Coil Characteristic Value
24 V DC: 2,5 W
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
3100
EAN
4052568129248
Manufacturer
Festo
