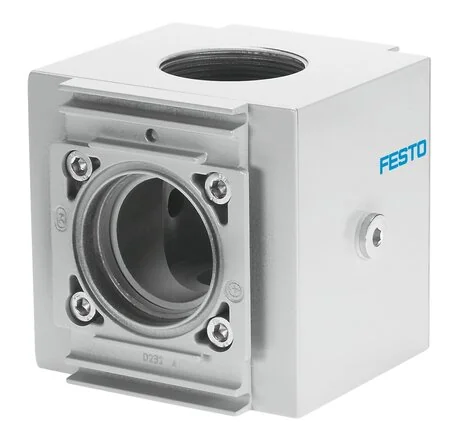

Festo - MS12N-FRM-G-541682 - Branch Module

SKU: festo-ms12n-frm-g-541682

Browse all parts
Festo - MS12N-FRM-G-541682 - Branch Module

€398.90€340.94 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€398.90

Brand
Festo
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [-:-:-]
Construction Set Up
Branching module
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Battery module
Pneumatic Connection 2
Battery module
Pneumatic Connection 3
2 NPT
Pneumatic Connection 4
1 NPT
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
0 to 20
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Connection Plate Material
Aluminium die casting
Module Connector Material
Aluminium die casting
Mounting Bracket Material
Aluminium die casting
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Normal Nominal Flow In Main Flow Direction 1 -> 2
25000 to 42000
EAN
4052568347536
Manufacturer
Festo
