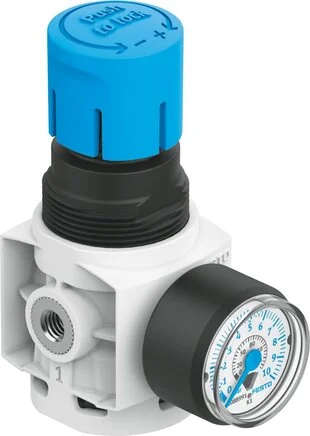

Festo - MS2-LFR-M5-D6-C-P-M-AR-BAR-B-8086641 - Filter Regulating Valve

SKU: festo-ms2-lfr-m5-d6-c-p-m-ar-bar-b-8086641

Browse all parts
Festo - MS2-LFR-M5-D6-C-P-M-AR-BAR-B-8086641 - Filter Regulating Valve

€59.45€50.81 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€59.45

Brand
Festo
Size
2
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Clamps Material
PC
Filter Material
PE
Filter Porosity
5
Spring Material
High-alloyed steel
Condensate Drain
Manually rotating
Housing Material
PA reinforced
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Diaphragm Material
NBR
Construction Set Up
Filter regulator with pressure gauge
Controller Function
mit Rückstromverhalten
Presentable Unit(s)
psi
Installation Position
vertical ± 5°
Valve Tappet Material
NBR
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 2
M5
Rotary Button Material
POM
Dividing Plate Material
POM
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
50
Max. Condensate Amount (ml)
3,0
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [6:4:4]
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Pressure Hysteresis (MPa)
0,025
Pressure Regulation Range (bar)
0.5 to 7
Standard Nominal Flow Rate (Standardised To DIN 1343)
140
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568451493
Manufacturer
Festo
