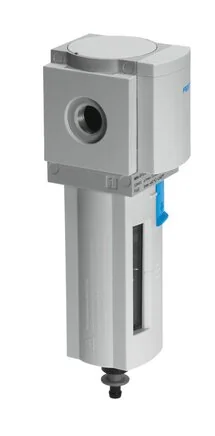

Festo - MS4N-LF-1/8-CUV-535672 - Filter

SKU: festo-ms4n-lf-1-8-cuv-535672

Browse all parts
Festo - MS4N-LF-1/8-CUV-535672 - Filter

€138.80€118.63 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€138.80

Brand
Festo
Size
4
Pore Size
5
Model Series
MS
Material Note
RoHs compliant
Fastening Type
With Accessories
Seals Material
NBR
Clamps Material
Aluminium wrought alloy
Filter Material
PE
Filter Porosity
5
Window Material
PA
Clamp Protection
Integrated as metal bowl
Condensate Drain
manuell tastend
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Food Compatibility
See expanded material information
Construction Set Up
Sintered filter with centrifugal separator
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
1/8 NPT
Pneumatic Connection 2
1/8 NPT
Dividing Plate Material
POM
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
2 to 12
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Connection Plate Material
Aluminium die casting
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [6:8:4]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Degree Of Condensate Discharge
75
Standard Nominal Flow Rate (Standardised To DIN 1343)
1000
EAN
4052568343149
Manufacturer
Festo
