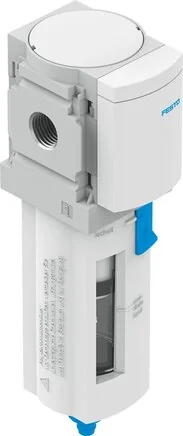

Festo - MS4N-LFM-1/8-AUV-539210 - Fine Filter

SKU: festo-ms4n-lfm-1-8-auv-539210

Browse all parts
Festo - MS4N-LFM-1/8-AUV-539210 - Fine Filter

€187.15€159.96 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€187.15

Brand
Festo
MPPS
0,05
Size
4
Model Series
MS
Material Note
RoHs compliant
Fastening Type
With Accessories
Seals Material
NBR
Clamps Material
Aluminium wrought alloy
Filter Material
Borosilicate fibre
Filter Porosity
0,01
Window Material
PA
Clamp Protection
Integrated as metal bowl
Condensate Drain
manuell tastend
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Food Compatibility
See expanded material information
Construction Set Up
Fibre filter
Residual Oil Content
0,01
Installation Position
vertical ± 5°
Filter Efficiency MPPS
99,95
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
1/8 NPT
Pneumatic Connection 2
1/8 NPT
Filter Effective Degree
99,9999
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,2 to 1,2
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Max. Condensate Amount (ml)
25
Air Purity Class At The Output
Druckluft nach ISO 8573-1:2010 [3:-:2]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Filter Efficiency, Oil Aerosol
99
Filter Efficiency, Fine Particles
99,995
Min. Normal Flow For Air Unit Class
54
Max. Normal Flow For Air Purity Class
360
EAN
4052568346614
Manufacturer
Festo
