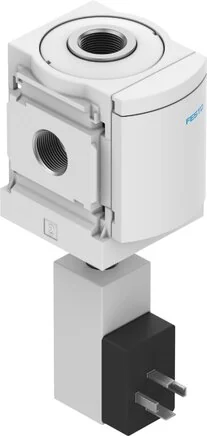

Festo - MS6-FRM-1/2-Y-Z-529855 - Branch Module

SKU: festo-ms6-frm-1-2-y-z-529855

Browse all parts
Festo - MS6-FRM-1/2-Y-Z-529855 - Branch Module

€227.16€194.15 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€227.16

Brand
Festo
Material Note
RoHs compliant
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Food Compatibility
See expanded material information
Construction Set Up
Branching module
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Pneumatic Connection 3
G1/2
Pneumatic Connection 4
G1/2
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
0 to 12
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range AC (V)
0 to 250
Operating Voltage Range DC (V)
0 to 125
Normal Nominal Flow Outlet Upwards
4400
Normal Nominal Flow Outlet Downwards
4600
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In Main Flow Direction 1 -> 2
14700
EAN
4052568164379
Manufacturer
Festo
