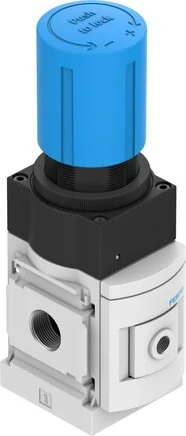

Festo - MS6-LRP-1/2-D2-A8-538020 - Precision Pressure Regulating Valve

SKU: festo-ms6-lrp-1-2-d2-a8-538020

Browse all parts
Festo - MS6-LRP-1/2-D2-A8-538020 - Precision Pressure Regulating Valve

€318.65€272.35 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€318.65

Brand
Festo
Size
6
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
Aluminium
Operating Medium
Inerte Gase
Pressure Display
G1/8 prepared
Construction Set Up
Pre-control precision membrane control valve
Controller Function
With relieving
Installation Position
arbitrary
Flow Secondary Venting
220
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Pneumatic Connection 3
G1/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,1 to 1,4
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (bar)
0,02
Pressure Regulation Range (bar)
0.05 to 0.7
Note On Operating And Control Medium
Oiled operation not possible
Standard Nominal Flow Rate (Standardised To DIN 1343)
1600
EAN
4052568175146
Manufacturer
Festo
