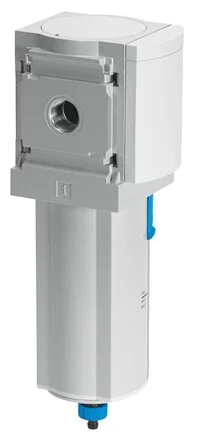

Festo - MS6-LWS-1/2-U-V-564870 - Water Separator

SKU: festo-ms6-lws-1-2-u-v-564870

Browse all parts
Festo - MS6-LWS-1/2-U-V-564870 - Water Separator

€420.69€359.56 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€420.69

Brand
Festo
Size
6
Model Series
MS
Material Note
RoHs compliant
Fastening Type
With Accessories
Seals Material
NBR
Clamps Material
Aluminium wrought alloy
Window Material
PA
Clamp Protection
Integrated as metal bowl
Condensate Drain
Fully automatic
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Food Compatibility
See expanded material information
Construction Set Up
Centrifugal separator
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
2 to 12
Ambient Temperature (°C)
-10 to 60
Max. Condensate Amount (ml)
38
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [7:7:4]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Degree Of Condensate Discharge
99
Standard Nominal Flow Rate (Standardised To DIN 1343)
3800
EAN
4052568211875
Manufacturer
Festo
