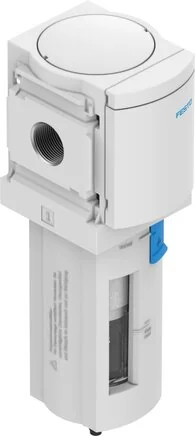

Festo - MS6N-LFM-3/8-BRV-531856 - Fine Filter

SKU: festo-ms6n-lfm-3-8-brv-531856

Browse all parts
Festo - MS6N-LFM-3/8-BRV-531856 - Fine Filter

€201.66€172.36 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€201.66

Brand
Festo
Size
6
Model Series
MS
Material Note
RoHs compliant
Fastening Type
With Accessories
Seals Material
NBR
Clamps Material
PC
Filter Material
Borosilicate fibre
Filter Porosity
1
Clamp Protection
Plastic basket
Condensate Drain
manuell tastend
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Food Compatibility
See expanded material information
Construction Set Up
Fibre filter
Residual Oil Content
0,5
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Max. Condensate Amount
38
Pneumatic Connection 1
3/8 NPT
Pneumatic Connection 2
3/8 NPT
Filter Effective Degree
99,99
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,2 to 1,2
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Air Purity Class At The Output
Druckluft nach ISO 8573-1:2010 [5:-:3]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Filter Efficiency, Oil Aerosol
90
Filter Efficiency, Fine Particles
99
Min. Normal Flow For Air Unit Class
140
Max. Normal Flow For Air Purity Class
950
EAN
4052568337919
Manufacturer
Festo
