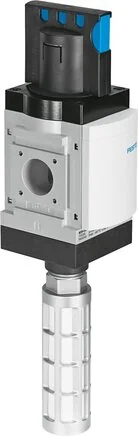

Festo - MS9-EM-NG-S-VS-562954 - Switch-On Valve

SKU: festo-ms9-em-ng-s-vs-562954

Browse all parts
Festo - MS9-EM-NG-S-VS-562954 - Switch-On Valve

€450.22€384.80 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€450.22

Brand
Festo
Size
9
Overlap
positive Überdeckung
Reset Mode
Forced guide
Control Type
Direct
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Actuation Type
Manually
Fastening Type
With Accessories
Seals Material
NBR
Valve Function
3/2 bistable
Exhaust Function
Cannot be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Construction Set Up
Piston pusher
Pitch Dimension (mm)
90
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Piston Pusher Material
POM
Pneumatic Connection 3
G1
Normal Nominal Flow 2-3
14100
Medium Temperature (°C)
60
Operating Pressure (bar)
0 to 20
Ambient Temperature (°C)
60
Sound Pressure Level (dB(A))
93
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
18000
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
EAN
4052568210588
Manufacturer
Festo
