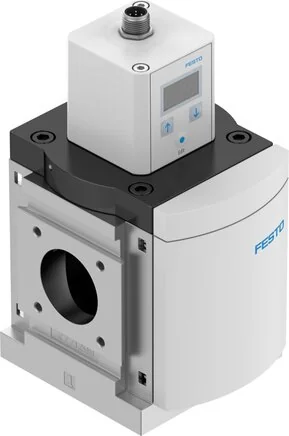

Festo - MS9-LR-G-PE10-VS-8203866 - Pressure Regulating Valve

SKU: festo-ms9-lr-g-pe10-vs-8203866

Browse all parts
Festo - MS9-LR-G-PE10-VS-8203866 - Pressure Regulating Valve

€1,347.59€1,151.79 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,347.59

Brand
Festo
Size
9
Model Series
MS
Material Note
RoHs compliant
Cover Material
PA reinforced
Fastening Type
With Accessories
Residual Ripple
10%
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Diaphragm Material
NBR
Construction Set Up
vorgesteuertes Präzisions-Kolbenregelventil
Controller Function
With relieving
Max. Power Input (A)
0,16
Installation Position
arbitrary
Valve Tappet Material
POM
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Medium Temperature (°C)
50
Operating Pressure (bar)
6 to 11
Ambient Temperature (°C)
60
Bearing Temperature (°C)
60
Connection Plate Material
Aluminium die casting
Module Connector Material
Aluminium die casting
Mounting Bracket Material
Aluminium die casting
Signal Range Analogue Input
0 - 10 V
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (bar)
0,05
Operating Voltage Range DC (V)
21.6 to 26.4
Pressure Regulation Range (bar)
0.1 to 10
Nominal Operating Voltage DC (V)
24
Note On Operating And Control Medium
Oiled operation not possible
Max. Electrical Power Consumption (W)
4,2
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
EAN
4052568649340
Manufacturer
Festo
