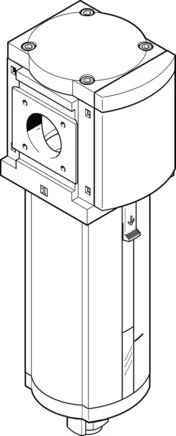

Festo - MS9-LWS-G-U-V-571468 - Water Separator

SKU: festo-ms9-lws-g-u-v-571468

Browse all parts
Festo - MS9-LWS-G-U-V-571468 - Water Separator

€594.23€507.89 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€594.23

Brand
Festo
Size
9
Model Series
MS
Material Note
RoHs compliant
Cover Material
PA reinforced
Fastening Type
With Accessories
Clamps Material
Aluminium wrought alloy
Window Material
PA
Clamp Protection
Integrated as metal bowl
Condensate Drain
Fully automatic
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [-:7:4]
Clamp Seal Material
NBR
Construction Set Up
Centrifugal separator
Swirl Disc Material
POM
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Dividing Plate Material
POM
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
2 to 12
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
60
Connection Plate Material
Aluminium die casting
Module Connector Material
Aluminium die casting
Mounting Bracket Material
Aluminium die casting
Max. Condensate Amount (ml)
220
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [-:7:4]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Degree Of Condensate Discharge
99
Standard Nominal Flow Rate (Standardised To DIN 1343)
15000
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
EAN
4052568217884
Manufacturer
Festo

Be the first to write a review!
