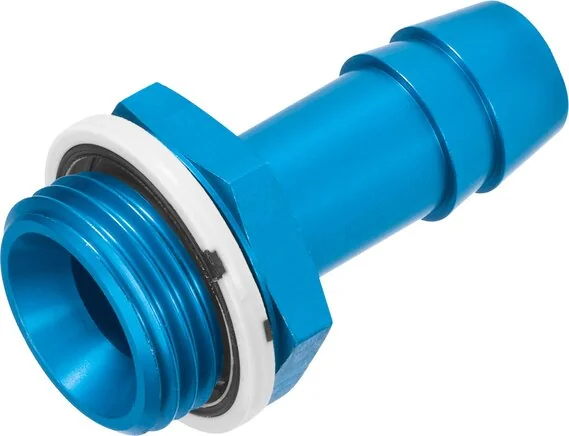

Festo - N-3/4-P-19-NPT-564848 - Hose Nozzle

SKU: festo-n-3-4-p-19-npt-564848

Browse all parts
Festo - N-3/4-P-19-NPT-564848 - Hose Nozzle

€30.51€26.08 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€30.51

Brand
Festo
Design
straight shape
Packing Size
1
Material Note
RoHs compliant
Housing Material
Anodised aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
coating
Nominal Width (mm)
16,5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Außengewinde 3/4 NPT
Pneumatic Connection 2
für Schlauch Innen-Ø 19 mm
Ambient Temperature (°C)
-10 to 60
Max. Tightening Torque (Nm)
40
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Operating Pressure Complete Temperature Range (bar)
-0,95 to 16
EAN
4052568056964
Manufacturer
Festo
