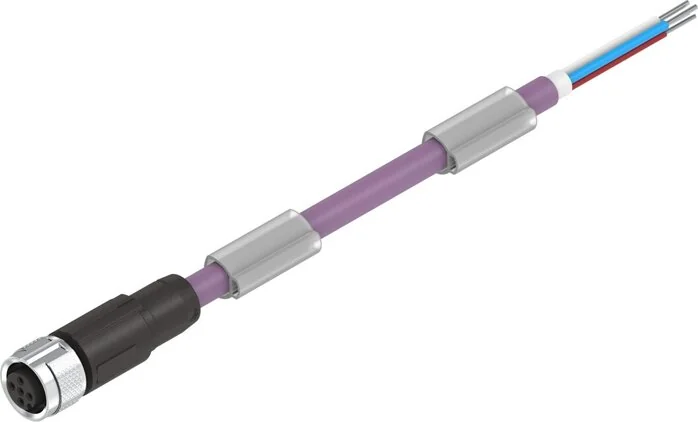

Festo - NEBC-M12G5-ES-5-LE5-CO-8074191 - Connection Line

SKU: festo-nebc-m12g5-es-5-le5-co-8074191

Browse all parts
Festo - NEBC-M12G5-ES-5-LE5-CO-8074191 - Connection Line

€88.63€75.75 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€88.63

Brand
Festo
Report
DeviceNet
Shielding
yes
Wire Ends
Unshielded
Cable Set Up
(2 x 0,34 mm²) + (2 x 0,25 mm²) + 0,34 mm²
Material Note
RoHs compliant
Housing Colour
black
Seals Material
NBR
Line Properties
energiekettentauglich
Cable Length (m)
5
Housing Material
TPE-U(PUR), verstärkt
Line Designation
with 2x sign carrier
Cable Diameter (mm)
6,7
Cable Shield Colour
rotlila
Protection Category
IP67
Screw Lock Material
Zinc pressure cast, nickel-plated
Connection Frequency
100
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
brass, Nickel and gold plated
Degree Of Contamination
3
Tolerance Cable Diameter
± 0,3 mm
Ambient Temperature (°C)
-25 to 80
Insulation Sleeve Material
PE
Surge Voltage Strength (kV)
2
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
round
Conductor - Nominal Cross-section
0,34 to 0,25
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
4
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
cable
Bending Radius, Moving Cable Placement (mm)
70
Electrical Connection 1, Connection Pattern
995384
Electrical Connection 1, Occupied Pin / Wire
5
Electrical Connection 2, Occupied Pin / Wire
5
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Bending Radius, Permanent Cable Placement (mm)
35
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 2, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
5
Electrical Connection 2, Number Of Pins / Wires
5
Ambient Temperature For Moving Cable Placements (°C)
-20 to 80
EAN
4052568446192
Manufacturer
Festo
