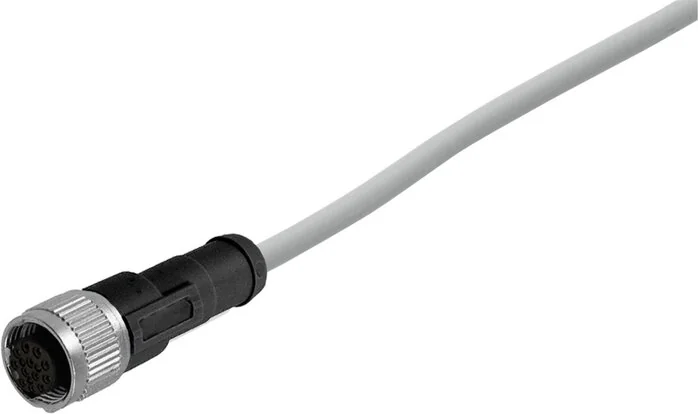

Festo - NEBS-M12G12-KS-10-LE12-2912452 - Connection Line

SKU: festo-nebs-m12g12-ks-10-le12-2912452

Browse all parts
Festo - NEBS-M12G12-KS-10-LE12-2912452 - Connection Line

€141.96€121.33 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€141.96

Brand
Festo
Shielding
yes
Cable Set Up
12 x 0,14 mm²
Material Note
RoHs compliant
Seals Material
NBR
Line Properties
Basic
Cable Length (m)
10
Line Designation
With Sign carrier
Cable Diameter (mm)
8,5
Cable Shield Colour
black
Protection Category
IP67
Locking Nut Material
Zinc pressure cast
Test Conditions Line
Biegewechselfestigkeit: nach Festo Norm
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Nickel and gold plated
Degree Of Contamination
3
Electrical Connection 1
Straight socket, M12x1, 12-pin A-coded
Electrical Connection 2
Open end, 12-wire
Connection Cross-section
0,14
Tolerance Cable Diameter
± 0,2 mm
Ambient Temperature (°C)
-30 to +80
Colour Code Wire Insulation
Pin 9 = rot
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
0 - No corrosion stressing
Min. Cable Bending Radius (mm)
85
Operating Voltage Range DC (V)
0 to 30
Nominal Operating Voltage DC (V)
30
Current Carrying Capacity At 40 °C (A)
1,5
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Bending Radius, Permanent Cable Placement (mm)
42,5
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Ambient Temperature For Moving Cable Placements (°C)
-25 to 80
EAN
4052568267735
Manufacturer
Festo
