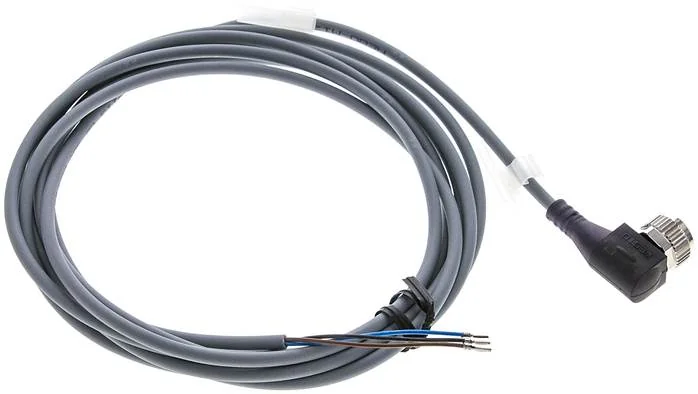

Festo - NEBU-M12W5P-K-2.5-LE3-541366 - Connection Line

SKU: festo-nebu-m12w5p-k-2-5-le3-541366

Browse all parts
Festo - NEBU-M12W5P-K-2.5-LE3-541366 - Connection Line

€36.27€31.00 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€36.27

Brand
Festo
Cable Set Up
3x0,25
Housing Colour
black
Seals Material
NBR
Line Properties
Standard
Cable Length (m)
2,5
Housing Material
TPE-U(PUR)
Line Designation
with 2x sign carrier
Special Features
Oil resistant
Cable Diameter (mm)
3,8
Cable Shield Colour
Grey
Protection Category
IP65, IP68, IP69K
Screw Lock Material
brass, nickel-plated
Complies To Standard
EN 61076-2-101, Wire colours and connection numbers acc. to EN 60947-5-2
Material Information
halogen free, Copper and PTFE-free, RoHs compliant, Phosphoric acid ester free
Test Conditions Line
Bending radius strength to Festo standard, Cable track: 5 million cycles, bending radius 75 mm, Test conditions on request
Cable Sleeve Material
TPE-U(PUR)
Plug Contacts Material
Copper alloy gold plated
Degree Of Contamination
3
Tolerance Cable Diameter
± 0,1 mm
Ambient Temperature (°C)
-25 to 70
Insulation Sleeve Material
PP
Switching Status Indicator
For PNP closer, LED yellow
Operation-readiness Display
LED green
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
10 to 30
Electrical Connection 1, Design
round
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
Angled
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40°C (A)
4,0
Electrical Connection 1, Fastening Type
Screw lock
Conductor - Nominal Cross-section (mm²)
0,25
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
cable
Bending Radius, Moving Cable Placement (mm)
39
Electrical Connection 1, Occupied Pin / Wire
3
Electrical Connection 2, Occupied Pin / Wire
3
Bending Radius, Permanent Cable Placement (mm)
12
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-RL
Electrical Connection 1, Connection Technology
M12x1 A coded to EN 61076-2-101
Electrical Connection 2, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
5
Electrical Connection 2, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568050443
Manufacturer
Festo
