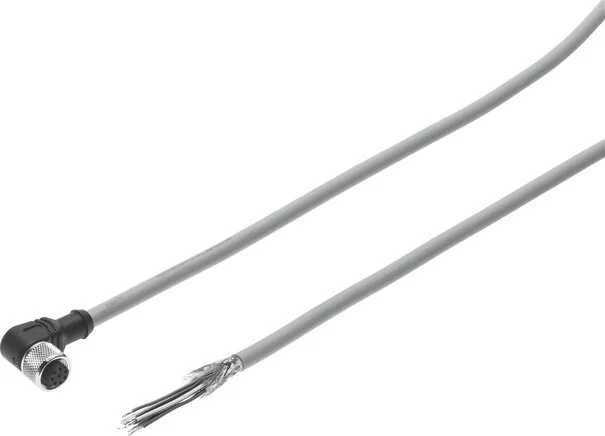

Festo - NEBU-M12W8-K-2-N-LE8-542256 - Socket Cable

SKU: festo-nebu-m12w8-k-2-n-le8-542256

Browse all parts
Festo - NEBU-M12W8-K-2-N-LE8-542256 - Socket Cable

€65.48€55.97 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€65.48

Brand
Festo
Shielding
yes
Wire Ends
Tin plated
Cable Set Up
8 x 0,25 mm²
Material Note
RoHs compliant
Seals Material
NBR
Line Properties
Standard
Cable Length (m)
2
Housing Material
TPE-U(PUR)
Line Designation
Without sign holder
Cable Diameter (mm)
6,3
Cable Shield Colour
Grey
Protection Category
IP67
Screw Lock Material
Chrome-plated brass
Complies To Standard
EN 61076-2-101
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Copper alloy gold plated
Degree Of Contamination
3
Tolerance Cable Diameter
± 0,2 mm
Ambient Temperature (°C)
-25 to 80
Insulation Sleeve Material
PP
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range AC (V)
0 to 30
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
round
Conductor - Nominal Cross-section
0,25
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
Angled
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
2
Electrical Connection 1, Fastening Type
drehbar
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
cable
Bending Radius, Moving Cable Placement (mm)
66
Electrical Connection 1, Connection Pattern
992265
Electrical Connection 1, Occupied Pin / Wire
8
Electrical Connection 2, Occupied Pin / Wire
8
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Bending Radius, Permanent Cable Placement (mm)
32
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 2, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
8
Electrical Connection 2, Number Of Pins / Wires
8
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar/nicht drehbar
Ambient Temperature For Moving Cable Placements (°C)
-5 to 80
EAN
4052568091125
Manufacturer
Festo
