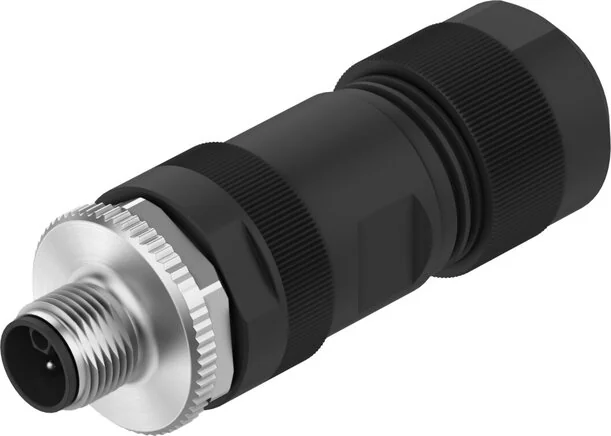

Festo - NECL-S-L12G4-C2-Q10-8203699 - Mains Connector

SKU: festo-necl-s-l12g4-c2-q10-8203699

Browse all parts
Festo - NECL-S-L12G4-C2-Q10-8203699 - Mains Connector

€59.09€50.50 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€59.09

Brand
Festo
Permission
c UL us - Recognized (OL)
Cable Output
straight
Material Note
RoHs compliant
Fastening Type
geschraubt
Housing Material
PA
Based On Standard
EN 61076-2-111
Certification Body
UL E474609
Protection Category
IP67
Screw Lock Material
Zinc pressure cast, nickel-plated
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Copper alloy gold plated
Degree Of Contamination
3
Permitted Cable Diameter
8 - 13 mm für elektrischen Anschluss 1
Ambient Temperature (°C)
-40 to 105
Surge Voltage Strength (kV)
1,5
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
0 to 63
Electrical Connection 1, Design
round
Nominal Operating Voltage DC (V)
63
Conductor - Nominal Cross-section
AWG14
Electrical Connection 1, Function
Spannungsversorgung
Current Carrying Capacity At 40 °C (A)
16
Electrical Connection 1, Connection Type
Plug
Electrical Connection 1, Connection Pattern
997397
Electrical Connection 1, Connection Technology
M12x1, L-codiert nach EN 61076-2-111
Electrical Connection 2, Connection Technology
Screw clamp
Electrical Connection 1, Number Of Pins / Wires
4
EAN
4052568786441
Manufacturer
Festo
