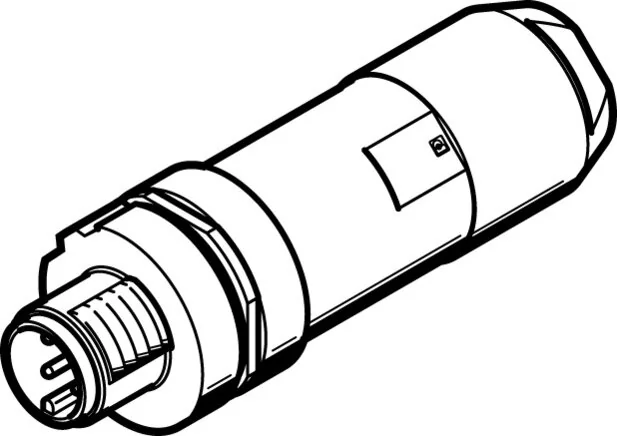

Festo - NECU-M-S-A12G4-IS-575719 - Plug

SKU: festo-necu-m-s-a12g4-is-575719

Browse all parts
Festo - NECU-M-S-A12G4-IS-575719 - Plug

€47.40€40.51 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€47.40

Brand
Festo
Plug Coding
A
Housing Material
nickel-plated, Zinc pressure cast
Based On Standard
EN 61076-2-101
Protection Category
IP65, IP67
Material Information
RoHs compliant
0 - No corrosion stressing
Installation Position
arbitrary
LABS (PWIS) Conformity
3
Plug Contacts Material
Bronze, Gold plated
Ambient Temperature (°C)
-40 to 85
Permitted Cable Diameter (mm)
4 to 8
Operating Voltage Range DC (V)
0 to 30
Connection Cross-section (mm²)
0.14 to 0.5
Current Carrying Capacity At 40°C (A)
4,0
UKCA Marking (See Declaration Of Conformity)
M12x1, 4 pin, Plug straight, Spring tension clamp
EAN
4052568104191
Manufacturer
Festo
