Material Note
RoHs compliant
Cable Design 1
3 x 0,25 mm²
Cable Design 2
2 x 0,5 mm²
Line Properties
For static applications
Housing Material
TPE-U(PUR)
Line Designation
Without sign holder
Based On Standard
EN 61076-2-101
Construction Set Up

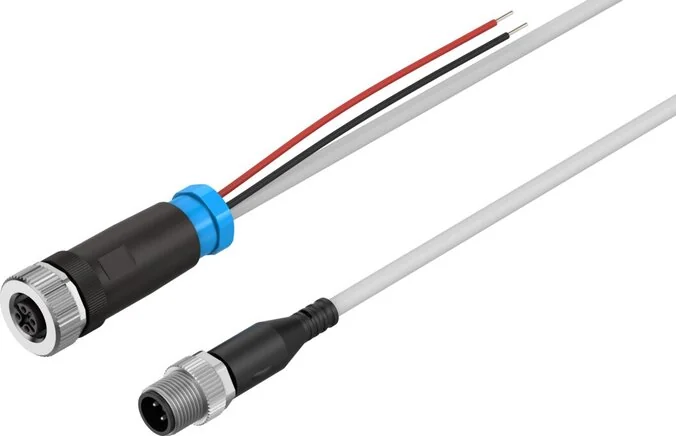

Y-distributor with cable control side
Screw Lock Material
Zinc pressure cast, nickel-plated
Additional Functions
Zusatzeinspeisung für Port B
Cable Diameter 2 (mm)
1,75
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
brass, Gold plated
Ambient Temperature (°C)
-30 to +80
Bearing Temperature (°C)
-30 to +80
Insulation Sleeve Material
PVC
Protection Line Connection
Not available
Surge Voltage Strength (kV)
0,8
Tolerance, Cable Diameter 1
± 0,1 mm
Tolerance, Cable Diameter 2
± 0,05 mm
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
round
Electrical Connection 2, Design
round
Nominal Operating Voltage DC (V)
24
Conductor - Nominal Cross-section
0.25 to 0.5
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Kommunikation
Electrical Connection 3, Function
Additional feed
Electrical Connection 1, Cable Output
straight
Electrical Connection 2, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
4
Electrical Connection 1, Fastening Type
Schraubverriegelung mit Sechskant SW18 und Längsrändel
Electrical Connection 2, Fastening Type
Schraubverriegelung mit Sechskant SW13 und Längsrändel
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
Plug
Electrical Connection 3, Connection Type
2x single wire
Electrical Connection 1, Connection Pattern
995384
Electrical Connection 2, Connection Pattern
995573
Electrical Connection 1, Occupied Pin / Wire
5
Electrical Connection 2, Occupied Pin / Wire
3
Electrical Connection 3, Occupied Pin / Wire
2
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 2, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 3, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
5
Electrical Connection 2, Number Of Pins / Wires
3
Electrical Connection 3, Number Of Pins / Wires
2
Bending Radius 1, Permanent Cable Placement (mm)
11,7
Bending Radius 2, Permanent Cable Placement (mm)
6
