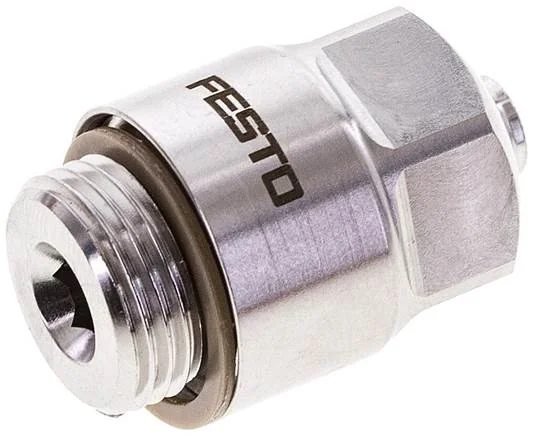

Festo - NPCK-C-D-G38-K10-1489614 - Fitting

SKU: festo-npck-c-d-g38-k10-1489614

Festo - NPCK-C-D-G38-K10-1489614 - Fitting

€45.02€38.48 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€45.02

Brand
Festo
Design
straight shape
Material Note
RoHs compliant
Stud Material
High-alloyed stainless steels
Gasket Material
PEEK
Operating Medium
Wasserdampf
Seal Type On Stud
gasket
Food Compatibility
See expanded material information
Nominal Width (mm)
6,2
Protection Category
IP69K
Locking Nut Material
High-alloyed stainless steels
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Male thread G3/8
Pneumatic Connection 2
für Schlauch Außen-Ø 10 mm
Ambient Temperature (°C)
-20 to 120
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Nominal Tightening Torque (Nm)
35,0
Information About Operating Pressure
Wasserdampf: 0 - 0,15 MPa, 0 - 1,5 bar, 0 - 22 psi
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 10 %
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,2
EAN
4052568106225
Manufacturer
Festo
