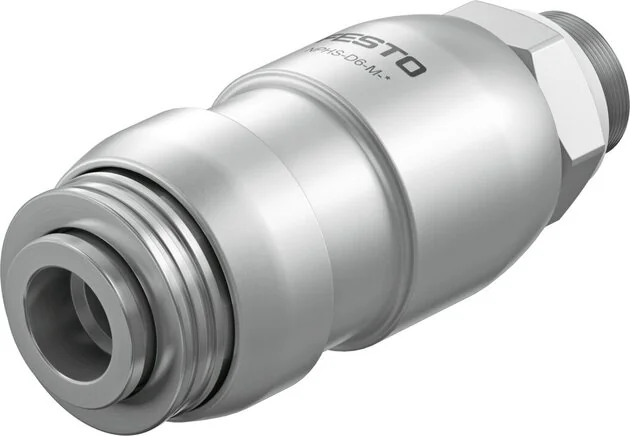

Festo - NPHS-D6-M-G12-8059277 - Coupling Socket

SKU: festo-nphs-d6-m-g12-8059277

Festo - NPHS-D6-M-G12-8059277 - Coupling Socket

€64.20€54.87 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€64.20

Brand
Festo
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Seals Material
NBR
Sleeve Material
farblos eloxiert
Spring Material
High-alloyed stainless steels
Housing Material
brass, nickel-plated
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
10
Inside Ring Material
Brass
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G1/2
Thread Sealing Material
HNBR
Threaded Piece Material
brass, nickel-plated
Ambient Temperature (°C)
-20 to 80
Material Releasing Sleeve
brass, nickel-plated
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
25,0
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,2
Nominal Flow Rate Standardised According To ISO 8778
2168 to 2276,4
Standard Nominal Flow Rate (Standardised To DIN 1343)
2000 to 2100
EAN
4052568290221
Manufacturer
Festo
