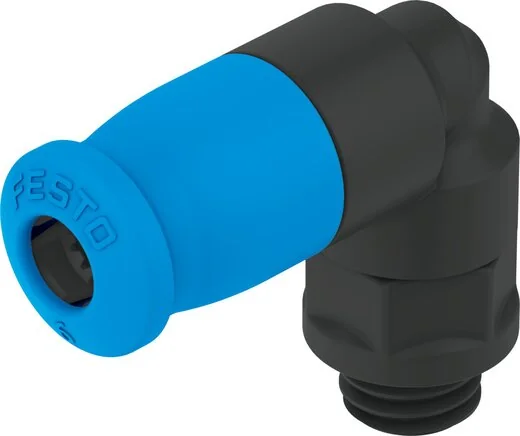

Festo - NPKA-L-G18-Q6-P10-1655429 - L-Click Fitting

SKU: festo-npka-l-g18-q6-p10-1655429

Festo - NPKA-L-G18-Q6-P10-1655429 - L-Click Fitting

€8.85€7.56 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€8.85

Brand
Festo
Size
Standard
Packing Size
10
Material Note
RoHs compliant
Sleeve Material
POM
Housing Material
PA66-GF30
Operating Medium
Wasser (flüssig, eisfrei)
Seal Type On Stud
gasket
Food Compatibility
See expanded material information
Nominal Width (mm)
4
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
Male thread G1/8
Pneumatic Connection 2
für Schlauch Außen-Ø 6 mm
Hose Plug-in Depth (mm)
25,8
Thread Sealing Material
NBR
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
-10 to 60
Max. Tightening Torque (Nm)
2
Tube Seal, Hose Seal Material
NBR
Nominal Tightening Torque (Nm)
1,25
Information About Operating Pressure
Wasser: max. 0,6 MPa bei 0 - 50 °C
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
EAN
4052568062262
Manufacturer
Festo
