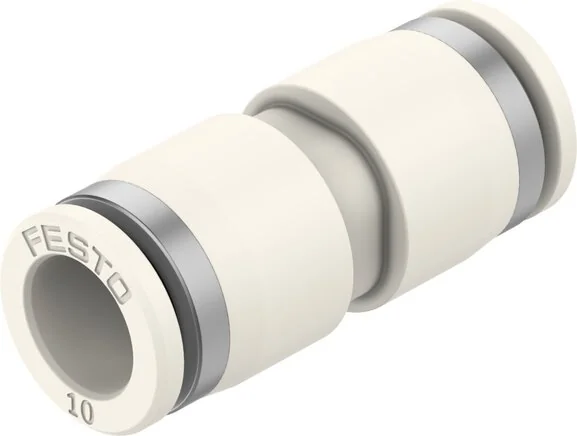

Festo - NPQO-D-Q10-E-P5-8203317 - Push-In Fitting

SKU: festo-npqo-d-q10-e-p5-8203317

Browse all parts
Festo - NPQO-D-Q10-E-P5-8203317 - Push-In Fitting

€16.18€13.83 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€16.18

Brand
Festo
Design
straight shape
Packing Size
5
Material Note
RoHs compliant
Sleeve Colour
white
O-ring Material
FPM
Sleeve Material
PVDF
Housing Material
PVDF
Operating Medium
Nitrogen
Food Compatibility
See expanded material information
Nominal Width (mm)
9
Construction Set Up
Push-pull principle
Thrust Ring Material
PVDF
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
für Schlauch Außen-Ø 10 mm
Pneumatic Connection 2
für Schlauch Außen-Ø 10 mm
Hose Plug-in Depth (mm)
20,1
Medium Temperature (°C)
0 to 120
Ambient Temperature (°C)
0 to 60
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Biocompatibility According To Standard
ISO 18562
Maximum Impurity Level For Hydrocarbons
550
Oxygen Suitability According To Standard
ISO 15001
Temperature Depending Operating Pressure (MPa)
-0,09 to 1,2
Operating Pressure Complete Temperature Range (MPa)
-0,09 to 0,3
EAN
4052568659493
Manufacturer
Festo
