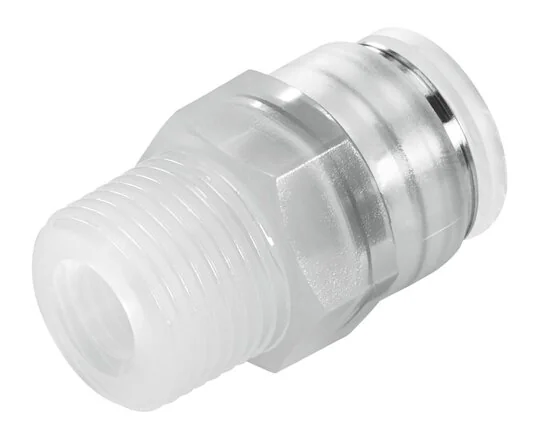

Festo - NPQP-D-R14-Q10-FD-P10-133047 - Push-In Fitting

SKU: festo-npqp-d-r14-q10-fd-p10-133047

Browse all parts
Festo - NPQP-D-R14-Q10-FD-P10-133047 - Push-In Fitting

€13.31€11.38 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€13.31

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
transparent weiß
Fastening Type
Außensechskant SW19
Housing Material
PP
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Food Compatibility
See expanded material information
Nominal Width (mm)
6,2
Construction Set Up
Push-pull principle
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Male thread R1/4
Pneumatic Connection 2
für Schlauch Außen-Ø 10 mm
Ambient Temperature (°C)
-20 to 60
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Temperature Depending Operating Pressure (MPa)
-0,095 to 1
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,45
EAN
4052568029302
Manufacturer
Festo
