Festo - NPQP-Y-R14-Q6-FD-P10-133084 - Y Push-In Fitting

SKU: festo-npqp-y-r14-q6-fd-p10-133084

Browse all parts

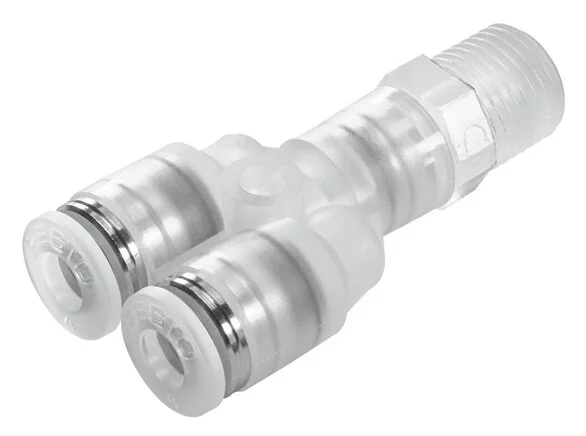

Festo - NPQP-Y-R14-Q6-FD-P10-133084 - Y Push-In Fitting

€26.16€22.36 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€26.16

Brand
Festo
Size
Standard
Design
Y-Form
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
transparent weiß
Fastening Type
Außensechskant SW14
Housing Material
PP
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Food Compatibility
See expanded material information
Nominal Width (mm)
2,8
Construction Set Up
Push-pull principle
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Male thread R1/4
Pneumatic Connection 2
für Schlauch Außen-Ø 6 mm
Ambient Temperature (°C)
-20 to 60
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Temperature Depending Operating Pressure (MPa)
-0,095 to 1
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,45
EAN
4052568029678
Manufacturer
Festo
