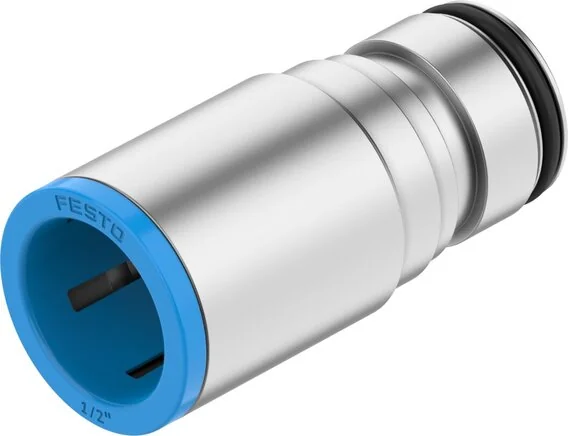

Festo - NPQX-D-PC15-T12-P2-8225234 - Cartridge

SKU: festo-npqx-d-pc15-t12-p2-8225234

Browse all parts
Festo - NPQX-D-PC15-T12-P2-8225234 - Cartridge

€24.20€20.68 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€24.20

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
2
Material Note
RoHs compliant
Sleeve Colour
blue
Fastening Type
With Holding clamp
O-ring Material
HNBR
Sleeve Material
PA reinforced
Housing Material
High-alloyed steel
Operating Medium
Inerte Gase
Seal Type On Stud
O-ring
Nominal Width (mm)
10
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-C1-L
Pneumatic Connection 1
Cartridge 15 mm
Pneumatic Connection 2
"für Schlauch Außen-Ø 1/2"""
Hose Plug-in Depth (mm)
25,4
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
-5 to 60
Tube Seal, Hose Seal Material
HNBR
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568789923
Manufacturer
Festo
