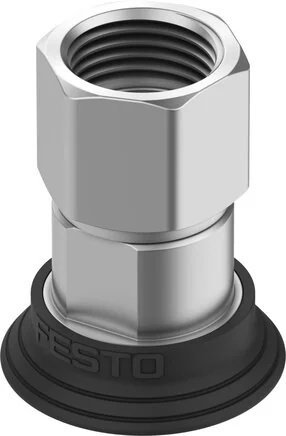

Festo - OGVM-30-S-N-G38F-8211013 - Vacuum Sucker

SKU: festo-ogvm-30-s-n-g38f-8211013

Browse all parts
Festo - OGVM-30-S-N-G38F-8211013 - Vacuum Sucker

€40.84€34.91 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€40.84

Brand
Festo
Colour
black
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round flat
Vacuum Connection
female thread G3/8
Nominal Width (mm)
4
Operating Pressure
-0,095 to 0
Suction Cup Volume
1,8
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
NBR
LABS (PWIS) Conformity
VDMA24364-A1/A2-L
Ambient Temperature (°C)
-20 to 80
Suction Cup Diameter (mm)
30
Min. Workpiece Radius (mm)
35
Nominal Operating Pressure
-0,06
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Height Balance Suction Cup (mm)
3,0
Shear Force For Nominal Operating Pressure (N)
35
Holding Force For Nominal Operating Pressure (N)
36
EAN
4052568790301
Manufacturer
Festo
