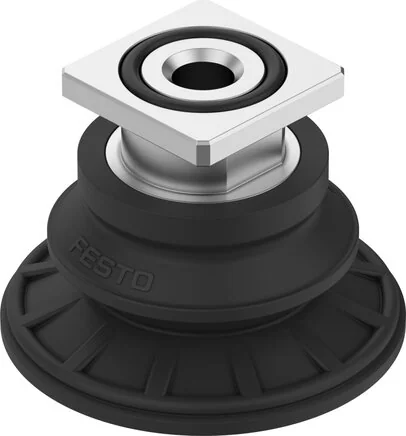

Festo - OGVM-60-A-N-RA-8213235 - Vacuum Sucker

SKU: festo-ogvm-60-a-n-ra-8213235

Browse all parts
Festo - OGVM-60-A-N-RA-8213235 - Vacuum Sucker

€71.93€61.48 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€71.93

Brand
Festo
Colour
black
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round folding bellows1.5 times
Vacuum Connection
Rechteckadapter RA
Nominal Width (mm)
8
Operating Pressure
-0,095 to 0
Suction Cup Volume
28
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
NBR
LABS (PWIS) Conformity
VDMA24364-A1/A2-L
Ambient Temperature (°C)
-20 to 80
Suction Cup Diameter (mm)
60
Min. Workpiece Radius (mm)
40
Nominal Operating Pressure
-0,06
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Height Balance Suction Cup (mm)
14,5
Shear Force For Nominal Operating Pressure (N)
126
Holding Force For Nominal Operating Pressure (N)
140
EAN
4052568790592
Manufacturer
Festo
