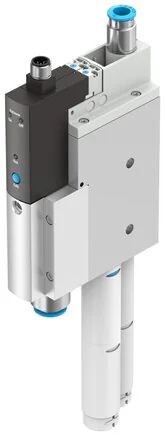

Festo - OVEM-30-H-C-QO-CE-N-1P-8070093 - Vacuum Suction Nozzle

SKU: festo-ovem-30-h-c-qo-ce-n-1p-8070093

Browse all parts
Festo - OVEM-30-H-C-QO-CE-N-1P-8070093 - Vacuum Suction Nozzle

€1,000.30€854.96 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,000.30

Brand
Festo
KC-mark
KC-EMV
Permission
c UL us - Listed (OL)
Max. Vacuum
93
Display Type
LED
Material Note
RoHs compliant
Pins Material
Steel
Power-on Time
100%
Control Output
PNP
Fastening Type
With Accessories
Seals Material
NBR
Valve Function
closed
Filter Material
Sinterstahl
Filter Porosity
40
Screws Material
Steel
Setting Options
Teach-in
Switch Function
Threshold value with fixed hysteresis
Housing Material
PA reinforced
Hysteresis (bar)
0,02
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Protection Class
III
Voltage Drop (V)
1,5
Relative Humidity
5 - 85 %
Silencer Material
PU foam
Vacuum Connection
QS-12
Measured Parameter
Relative pressure
Overload Resistant
Available
Accuracy In ± % FS
0,5
Construction Set Up
Modular
Integrated Function
vacuum switch
Jet Nozzle Material
Aluminium wrought alloy
Protection Category
IP65
Pitch Dimension (mm)
36
Button Field Material
PA reinforced
Electrical Connection
Plug
Hand Assist Actuation
tentative
Installation Position
arbitrary
Measurement Principle
Piezoresistive
Plug Housing Material
brass, nickel-plated
Residual Current (mA)
0,1
Ejector Characteristic
Standard
Empty Run Current (mA)
80
Insulation Voltage (V)
50
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Tightening Torque
2,5 Nm mit Durchgangsbohrung
Plug Contacts Material
brass, Gold plated
Pneumatic Connection 1
QS-10
Pneumatic Connection 3
silencer
Switching Logic Inputs
PNP (Positive switching)
Capture Nozzle Material
POM
Degree Of Contamination
3
Filter Housing Material
PA reinforced
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Operating Pressure (bar)
2 to 8
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Coil Characteristic Value
24 V DC: Low current phase 0.3 W, high current phase 2,55 W
Control Input To Standard
IEC 61131-2
Regulation Screw Material
Steel
Screw Connection Material
brass, nickel-plated
Switching Element Function
NO contact
Switching Position Display
LED
Switching Status Indicator
Visual
Reverse Polarity Protection
for all electrical connections
Surge Voltage Strength (kV)
0,8
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
20.4 to 27.6
Construction Type Silencer Type
open
Nominal Width Laval Nozzle (mm)
3
Nominal Operating Pressure (bar)
6
Pressure Measurement Range (bar)
-1 to 0
Reproducibility Shifting Time FS
0,6
Note On Operating And Control Medium
Oiled operation not possible
Settings Range Threshold Value (bar)
-1 to 0
Operating Pressure For Max. Vacuum (bar)
4
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Venting Time For Nominal Operating Pressure (s)
0,2
Max. Suction Volume Flow Rate Against Atmosphere
181
Noise Level For Nominal Operating Pressure (dB(A))
75
EAN
4052568300593
Manufacturer
Festo
