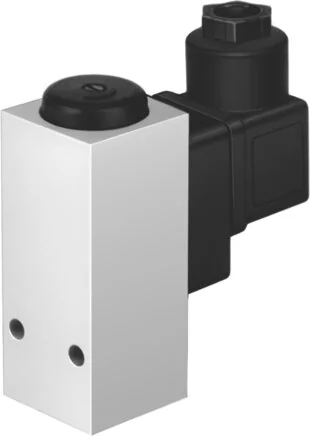

Festo - PEV-1/4-B-10773 - Pressure Switch

SKU: festo-pev-1-4-b-10773

Browse all parts
Festo - PEV-1/4-B-10773 - Pressure Switch

€204.98€175.20 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€204.98

Brand
Festo
Permission
CCC
Material Note
RoHs compliant
Fastening Type
With throughway bores
Housing Material
Aluminium die casting
Operating Medium
Water
Measured Parameter
Relative pressure
Measurement Process
Pneumatic electric pressure converter
Protection Category
IP65
Complies To Standard
EN 60947-5-1
Minimum Load Current
100 mA bei 5V
Pneumatic Connection
G1/4
Electrical Connection
viereckige Bauform
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Switch Contact Material
silver
Use Category Ohmic Load
DC-12
Max. Output Current (mA)
5000
Medium Temperature (°C)
-20 to 80
Operating Pressure (MPa)
0,1 to 1,2
Ambient Temperature (°C)
-20 to 80
Switching Element Function
changeover contact
Use Category Inductive Load
DC-13
Max. Switching Frequency (Hz)
3
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Switch Off Voltage AC (V)
250
Max. Switch Off Voltage DC (V)
125
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Settings Range Threshold Value (bar)
1 to 12
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
EAN
4052568002299
Manufacturer
Festo
