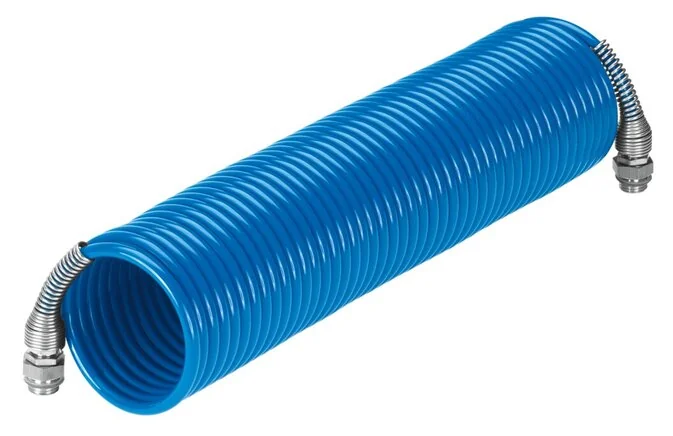

Festo - PPS-4-15-1/4-BL-19799 - Spiral Plastic Hose

SKU: festo-pps-4-15-1-4-bl-19799

Browse all parts
Festo - PPS-4-15-1/4-BL-19799 - Spiral Plastic Hose

€195.35€166.97 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€195.35

Brand
Festo
Colour
blue
Hose Material
PA12-P
Material Note
RoHs compliant
Winding Count
90
Block Length (m)
0,67
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Inner Diameter (mm)
4,7
Outer Diameter (mm)
6,3
Operating Length (m)
15,0
Winding Diameter (mm)
75
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
Male thread G1/4
Pneumatic Connection 2
Male thread G1/4
Bend Protection Material
verzinkt
Ambient Temperature (°C)
-30 to +80
Connection Thread Material
Brass
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
11
Tolerance To Nominal Tightening Torque
± 20 %
Temperature Depending Operating Pressure (bar)
-0.95 to 21.2
EAN
4052568113513
Manufacturer
Festo
