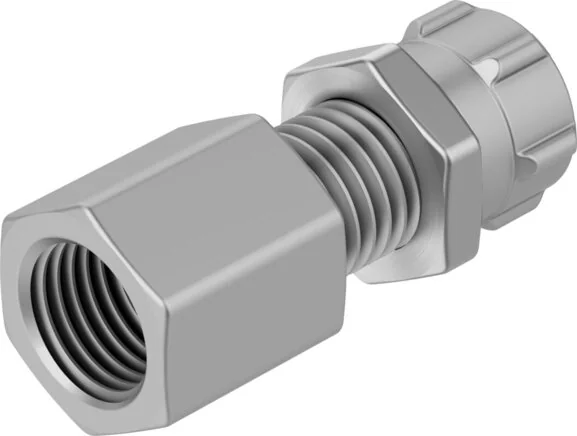

Festo - QCK-1/4-PK-6-B-9426 - Bulkhead Fitting

SKU: festo-qck-1-4-pk-6-b-9426

Browse all parts
Festo - QCK-1/4-PK-6-B-9426 - Bulkhead Fitting

€20.62€17.62 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€20.62

Brand
Festo
Design
Schott
Nut Material
Zinc-plated steel
Packing Size
10
Material Note
RoHs compliant
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
gasket
Material Connector
Aluminium-Knetlegierung, eloxiert
Nominal Width (mm)
5,3
Locking Nut Material
Aluminium-Knetlegierung, eloxiert
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
female thread G1/4
Pneumatic Connection 2
für Stecknippel Innen-Ø 6 mm mit Mutter
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
11,00
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 10 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568020750
Manufacturer
Festo
