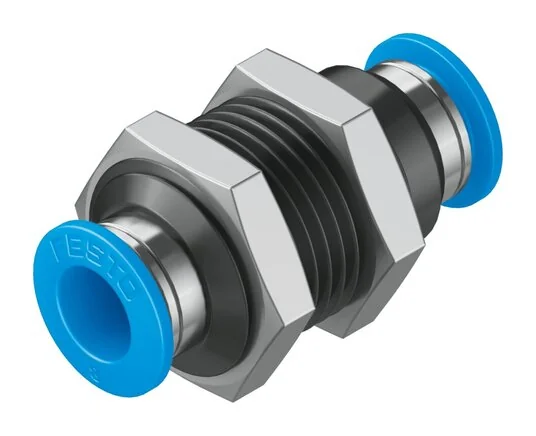

Festo - QSS-8-153159 - Bulkhead Push-In Fitting

SKU: festo-qss-8-153159

Festo - QSS-8-153159 - Bulkhead Push-In Fitting

€11.41€9.75 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€11.41

Brand
Festo
Size
Standard
Design
Schott
Nut Material
Nickel-plated brass
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
blue
Fastening Type
Außensechskant SW19
Sleeve Material
POM
Housing Material
Anodised aluminium
Operating Medium
Wasser (flüssig, eisfrei)
Nominal Width (mm)
7
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
für Schlauch Außen-Ø 8 mm
Pneumatic Connection 2
für Schlauch Außen-Ø 8 mm
Hose Plug-in Depth (mm)
18,2
Ambient Temperature (°C)
80
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Oiled operation possible
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568011147
Manufacturer
Festo
