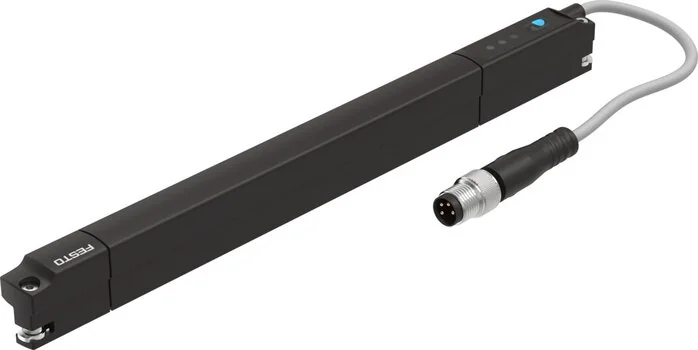

Festo - SDAP-MHS-M160-1L-A-E-0.3-M8-8050122 - Position Transmitter

SKU: festo-sdap-mhs-m160-1l-a-e-0-3-m8-8050122

Browse all parts
Festo - SDAP-MHS-M160-1L-A-E-0.3-M8-8050122 - Position Transmitter

€488.28€417.33 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€488.28

Brand
Festo
Design
For T-slot
Permission
c UL us - Listed (OL)
Sensitivity
0,10
Foil Material
Polyester
Material Note
halogenfrei
Fastening Type
Insertable from above into the slot
Status Display
LED red
Analogue Output
4 - 20 mA
Line Properties
energiekettentauglich/ robotertauglich
Residual Ripple
10%
Cable Length (m)
0,3
Housing Material
High-alloyed stainless steels
Measured Parameter
Position
Overload Resistant
Available
Cable Shield Colour
Grey
Protection Category
IP68
Locking Nut Material
Nickel-plated brass
Recording Range (mm)
0 to 160000
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 28 mm
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Hall magnetic
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Copper alloy gold plated
Resolution Travel (mm)
0,05
Short Circuit Resistance
yes
Ambient Temperature (°C)
-25 to 70
Max. Movement Speed (m/s)
3
Connection Outlet Direction
along
Operation-readiness Display
LED green
Reverse Polarity Protection
for all electrical connections
Sampling Interval Type (ms)
1
Typical Linearity Error (mm)
±0.25
Operating Voltage Range DC (V)
15 to 30
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
Cable with plug
Max. Load Resistance Current Output (Ohm)
500
Electrical Connection 1, Connection Pattern
991171
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
4
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Ambient Temperature For Moving Cable Placements (°C)
-20 to 70
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568288792
Manufacturer
Festo
