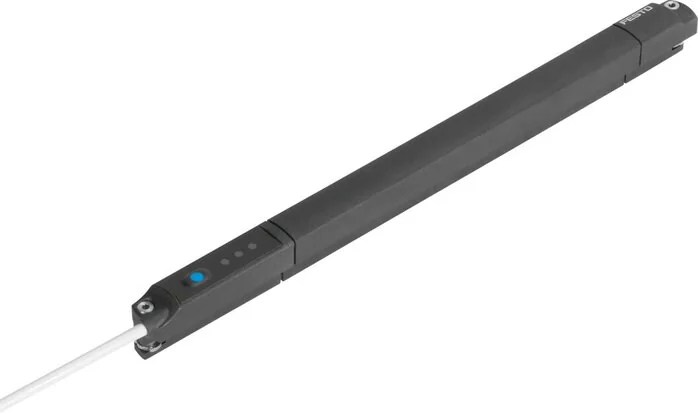

Festo - SDAT-MHS-M160-1L-SA-E-0.3-M8-1531269 - Position Transmitter

SKU: festo-sdat-mhs-m160-1l-sa-e-0-3-m8-1531269

Browse all parts
Festo - SDAT-MHS-M160-1L-SA-E-0.3-M8-1531269 - Position Transmitter

€560.28€478.87 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€560.28

Brand
Festo
Design
For T-slot
Report
IO-Link
Permission
c UL us - Listed (OL)
Sensitivity
0,100
Foil Material
Polyester
Material Note
halogenfrei
Control Output
PNP
Fastening Type
Insertable from above into the slot
Status Display
LED red
Analogue Output
4 - 20 mA
Line Properties
energiekettentauglich/ robotertauglich
Residual Ripple
10%
Setting Options
Button
Cable Length (m)
0,3
Housing Material
High-alloyed stainless steels
IO-Link, Profile
Smart sensor profile
Voltage Drop (V)
2,5
Measured Parameter
Position
Overload Resistant
Available
Repeatability (mm)
0,1
Cable Shield Colour
Grey
IO-Link, Port Class
A
Protection Category
IP68
Switch On Time (ms)
2
Locking Nut Material
Nickel-plated brass
Recording Range (mm)
0 to 160000
Switch Off Time (ms)
2
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 28 mm
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Hall magnetic
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Gold plated
Resolution Travel (mm)
0,05
Max. Output Current (mA)
100
Short Circuit Resistance
yes
Ambient Temperature (°C)
-25 to 70
IO-Link, Function Classes
Teach channel
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Max. Movement Speed (m/s)
3
Switching Element Function
Opener/closer switchable
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
IO-Link, Communication Mode
COM3 (230.4 kBaud)
Operation-readiness Display
LED green
Reverse Polarity Protection
for all electrical connections
Sampling Interval Type (ms)
1
Typical Linearity Error (mm)
±0.25
IO-Link, Process Data Width IN
2 Bytes
Max. Switching Capacity DC (W)
2,7
Max. Switching Frequency (kHz)
1000
Operating Voltage Range DC (V)
15 to 30
IO-Link, Minimum Cycle Time (ms)
1
IO-Link, Process Data Contents IN
4 bit BDC (Positionsüberwachung)
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
Cable with plug
Max. Load Resistance Current Output (Ohm)
500
Electrical Connection 1, Connection Pattern
991171
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
4
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Ambient Temperature For Moving Cable Placements (°C)
-20 to 70
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568238117
Manufacturer
Festo
