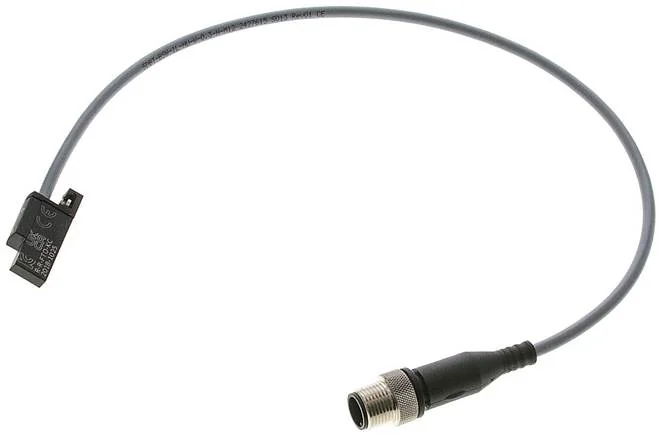

Festo - SDBT-BSW-1L-NU-W-0.3-N-M12-2427615 - Proximity Switch

SKU: festo-sdbt-bsw-1l-nu-w-0-3-n-m12-2427615

Browse all parts
Festo - SDBT-BSW-1L-NU-W-0.3-N-M12-2427615 - Proximity Switch

€74.21€63.43 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€74.21

Brand
Festo
Design
For T-slot
Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Control Output
NPN
Fastening Type
Insertable from above into the slot
Housing Colour
black
Line Properties
resistant to welding spatter
Residual Ripple
10%
Cable Length (m)
0,3
Housing Material
High-alloyed stainless steels
Special Features
resistant to welding spatter
Voltage Drop (V)
1,5
Based On Standard
EN 60947-5-2
Measured Parameter
Position
Overload Resistant
yes
Repeatability (mm)
0,2
Cable Shield Colour
Grey
Protection Category
IP68
Screw Lock Material
brass, nickel-plated
Switch On Time (ms)
15
Switch Off Time (ms)
25
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
PVC, irradiated crosslinked
Installation Position
arbitrary
Measurement Principle
Magnetoresistive
Plug Housing Material
TPE-U(PU)
Residual Current (mA)
0,14
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
brass, Nickel and gold plated
Max. Output Current (mA)
100
Short Circuit Resistance
yes
Ambient Temperature (°C)
-25 to 85
Max. Movement Speed (m/s)
1
Minimum Load Current (mA)
0
Functional Reserve Display
LED orange
Insulation Sleeve Material
PVC
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Max. Tightening Torque (Nm)
0,6
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Max. Switching Frequency (Hz)
25
Max. Switching Capacity DC (W)
2,8
Operating Voltage Range DC (V)
10 to 30
Rated Operating Voltage DC (V)
24
Noise Immunity To Magnetic Fields
bauartbedingt unempfindlich gegen Permanent-Magnetfelder < Bon
Switching Behaviour During Welding
Output signal freezes
Electrical Connection 1, Fastening Type
drehbar
Electrical Connection 1, Connection Type
Cable with plug
Max. Output Current In Fastening Sets (mA)
100
Electrical Connection 1, Connection Pattern
995573
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
3
Max. Switching Capacity DC In Fastening Sets (W)
2,8
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar/nicht drehbar
Ambient Temperature For Moving Cable Placements (°C)
-5 to 80
EAN
4052568264994
Manufacturer
Festo
