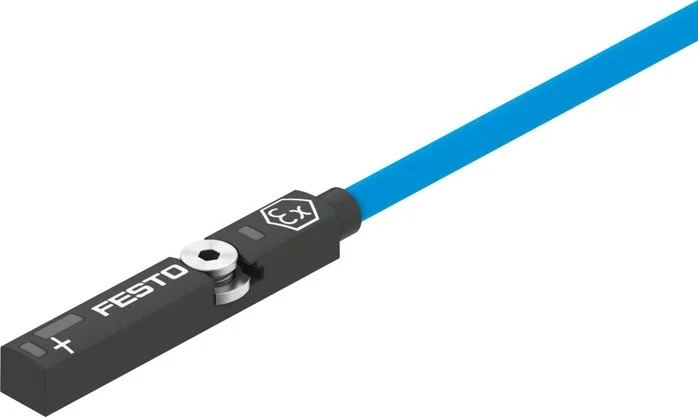

Festo - SDBT-MS-20NL-ZN-E-2.5-LE-EX6-8185110 - Proximity Switch

€66.98€57.25 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€66.98

Brand
Festo
Design
For T-slot
Wire Ends
Wire end sleeve
Permission
c UL us - Listed (HazLoc)
Torque (Nm)
0,1 to 0,6
Material Note
halogenfrei
Control Output
NAMUR
Fastening Type
Insertable from above into the slot
Housing Colour
black
Line Properties
Robot friendly
Residual Ripple
10%
Cable Length (m)
2,5
Housing Material
High-alloyed stainless steels
Special Features
Oil resistant
ATEX Gas Category
II 1G
Based On Standard
EN 60947-5-6
ATEX Dust Category
II 1D
Certification Body
UL E539825
Measured Parameter
Position
Repeatability (mm)
0,2
Cable Shield Colour
blue
Max. Input Power Pi
T6: 72 mW
Protection Category
IP68
Switch On Time (ms)
1
Switch Off Time (ms)
1
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Magnetoresistive
Residual Current (mA)
0.4 to 1
Ex Ambient Temperature
T6: -20°C <= Ta <= +45°C
LABS (PWIS) Conformity
VDMA24364-B2-L
Ambient Temperature (°C)
-40 to 85
Max. Input Current Ii (A)
0,25
Max. Input Voltage Ui (V)
28
Insulation Sleeve Material
PP
Switching Element Function
NAMUR
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Max. Tightening Torque (Nm)
0,6
Reverse Polarity Protection
for all electrical connections
Max. Switching Frequency (Hz)
330
Operating Voltage Range DC (V)
7.5 to 18
Rated Operating Voltage DC (V)
8,2
Ex Ignition Protection Type Gas
Ex ia IIC T4...T6 Ga X
Ex Ignition Protection Type Dust
Zone 20, AEx ia IIIC T135 °C Da
Effective Internal Capacitance Ci
79 nF
Effective Internal Inductivity Li
30 µH
Electrical Connection 1, Connection Type
cable
Ex Protection Approval Outside Of The EU
EPL Ga (US)
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
2
Ambient Temperature For Moving Cable Placements (°C)
-20 to 85
EAN
4052568631543
Manufacturer
Festo
