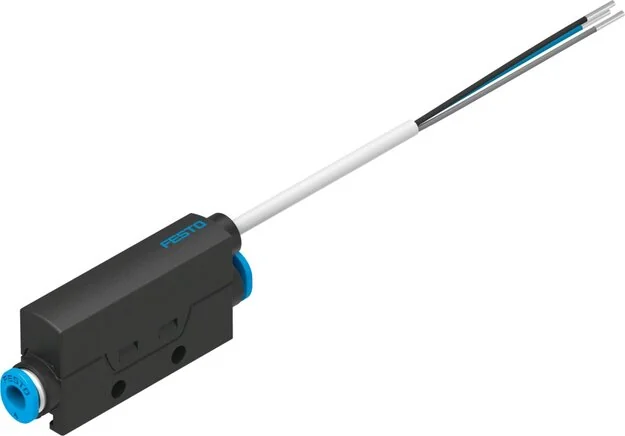

Festo - SFTE-5U-Q4-B-2.5K-8058513 - Flow Transmitter

SKU: festo-sfte-5u-q4-b-2-5k-8058513

Browse all parts
Festo - SFTE-5U-Q4-B-2.5K-8058513 - Flow Transmitter

€191.88€164.00 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€191.88

Brand
Festo
KC-mark
KC-EMV
Permission
RCM mark
Material Note
RoHs compliant
Fastening Type
With Accessories
Flow Direction
Uni-directional
Rise Time (ms)
3
Analogue Output
1 - 5 V
Cable Length (m)
2,5
Housing Material
PA reinforced
Operating Medium
Nitrogen
Measured Parameter
Volumenstrom
Overload Resistant
Available
Measurement Process
Heat Loss
Protection Category
IP40
Pneumatic Connection
für Steckanschluss-Außen-Ø 4 mm
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Thermic
Empty Run Current (mA)
17
LABS (PWIS) Conformity
VDMA24364-B2-L
Repeatability In ± %FS
1
Medium Temperature (°C)
0 to 50
Operating Pressure (bar)
-0.9 to 10
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Nominal Temperature (°C)
23
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
22 to 26
Min. Load Resistance Voltage Output
20
End Value For Flow Rate Sensing Range
5
Start Value For Flow Rate Sensing Range
0
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568435370
Manufacturer
Festo
