Festo - SIED-M18B-ZS-K-L-PA-538338 - Proximity Switch

SKU: festo-sied-m18b-zs-k-l-pa-538338

Browse all parts

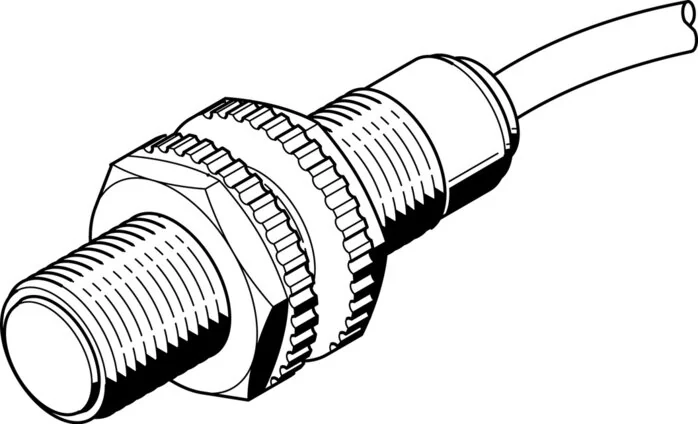

Festo - SIED-M18B-ZS-K-L-PA-538338 - Proximity Switch

€120.53€103.02 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€120.53

Brand
Festo
Size
M18
Design
round
Permission
c UL us - Listed (OL)
Torque (Nm)
2
Control Output
Contactless 2-wire
Fastening Type
With locking nut
Hysteresis (mm)
0.15 to 0.75
Cable Length (m)
2,5
Housing Material
PA reinforced
Integration Type
flush
Voltage Drop (V)
6
Reduction Factors
Stahl St 37 = 1,0
Repeatability (mm)
0,10
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Cable Sleeve Material
PVC
Electrical Connection
cable
Measurement Principle
Inductive
Empty Run Current (mA)
1,5
LABS (PWIS) Conformity
VDMA24364-Zone III
Network Frequency (Hz)
50 to 60
Max. Output Current (mA)
300
Short Circuit Resistance
no
Ambient Temperature (°C)
-25 to 70
Minimum Load Current (mA)
3
Insulation Sleeve Material
PVC
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Secured Safety Distance (mm)
4,05
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Operating Voltage Range AC (V)
20 to 250
Operating Voltage Range DC (V)
10 to 300
Max. Switching Frequency AC (Hz)
20
Max. Switching Frequency DC (Hz)
20
Measurement Switching Distance (mm)
5
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
2
Ambient Temperature For Moving Cable Placements (°C)
0 to 70
EAN
4052568089351
Manufacturer
Festo
