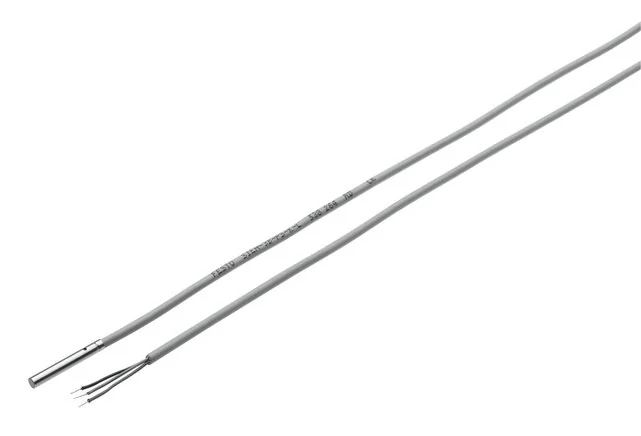

Festo - SIEH-3B-NS-K-L-538266 - Proximity Switch

SKU: festo-sieh-3b-ns-k-l-538266

Browse all parts
Festo - SIEH-3B-NS-K-L-538266 - Proximity Switch

€191.25€163.46 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€191.25

Brand
Festo
Design
round
Size (mm)
3
Permission
c UL us - Listed (OL)
Control Output
NPN
Fastening Type
clamped
Hysteresis (mm)
0,12
Residual Ripple
20%
Cable Length (m)
2,5
Housing Material
High-alloyed stainless steels
Integration Type
flush
Voltage Drop (V)
2
Reduction Factors
Stahl St 37 = 1,0
Repeatability (mm)
0,02
Protection Category
IP67
Switch On Time (ms)
0,02
Complies To Standard
EN 60947-5-2
Cable Sleeve Material
TPE-U(PUR)
Measurement Principle
Inductive
Residual Current (mA)
0,1
Empty Run Current (mA)
10
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
100
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Insulation Sleeve Material
PVC
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
und Schaltfrequenz < 10Hz
Secured Safety Distance (mm)
0,81
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Operating Voltage Range DC (V)
10 to 30
Max. Switching Frequency DC (Hz)
3.000
Measurement Switching Distance (mm)
1
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften (UK-R)
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568175528
Manufacturer
Festo
