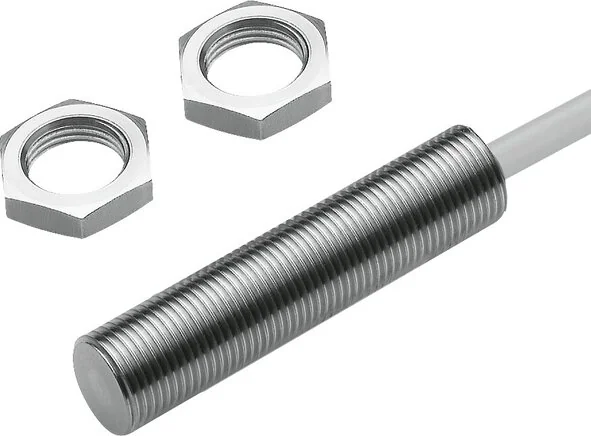

Festo - SIEH-M12B-PS-K-L-CR-538252 - Proximity Switch

SKU: festo-sieh-m12b-ps-k-l-cr-538252

Browse all parts
Festo - SIEH-M12B-PS-K-L-CR-538252 - Proximity Switch

€164.69€140.76 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€164.69

Brand
Festo
Size
M12
Permission
c UL us - Listed (OL)
Control Output
PNP
Fastening Type
With locking nut
Hysteresis (mm)
0,73
Residual Ripple
20%
Housing Material
High-alloyed steel
Integration Type
flush
Voltage Drop (V)
2
Reduction Factors
Stahl St 37 = 1,0
Protection Category
IP69K
Complies To Standard
EN 60947-5-2
Cable Sleeve Material
TPE-U(PUR)
Empty Run Current (mA)
12
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
und Schaltfrequenz < 10Hz
Secured Safety Distance (mm)
4,86
Max. Switching Frequency (Hz)
600
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
10 to 30
Sensor Integration Strength (bar)
80
Measurement Switching Distance (mm)
6
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften (UK-R)
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568175429
Manufacturer
Festo
